- Adopting new generation MOSFET process, low heat generation, can withstand high current instantly, high reliability; high performance 32-bit microprocessor, stronger computing power, faster operation speed.
- Multiple protection functions: abnormal start protection, overheating protection, throttle signal loss protection, low voltage cut-off protection, etc.
- It is very smooth when starting, and the throttle linearity is very precise. Unidirectional clutch makes the ESC drive more efficient and energy saving.
- Adjustable SBEC 5V/6V, output voltage 5V/6V can provide more powerful power. (Adjustable SBEC voltage for 40A/50A/60A/80A/100A)

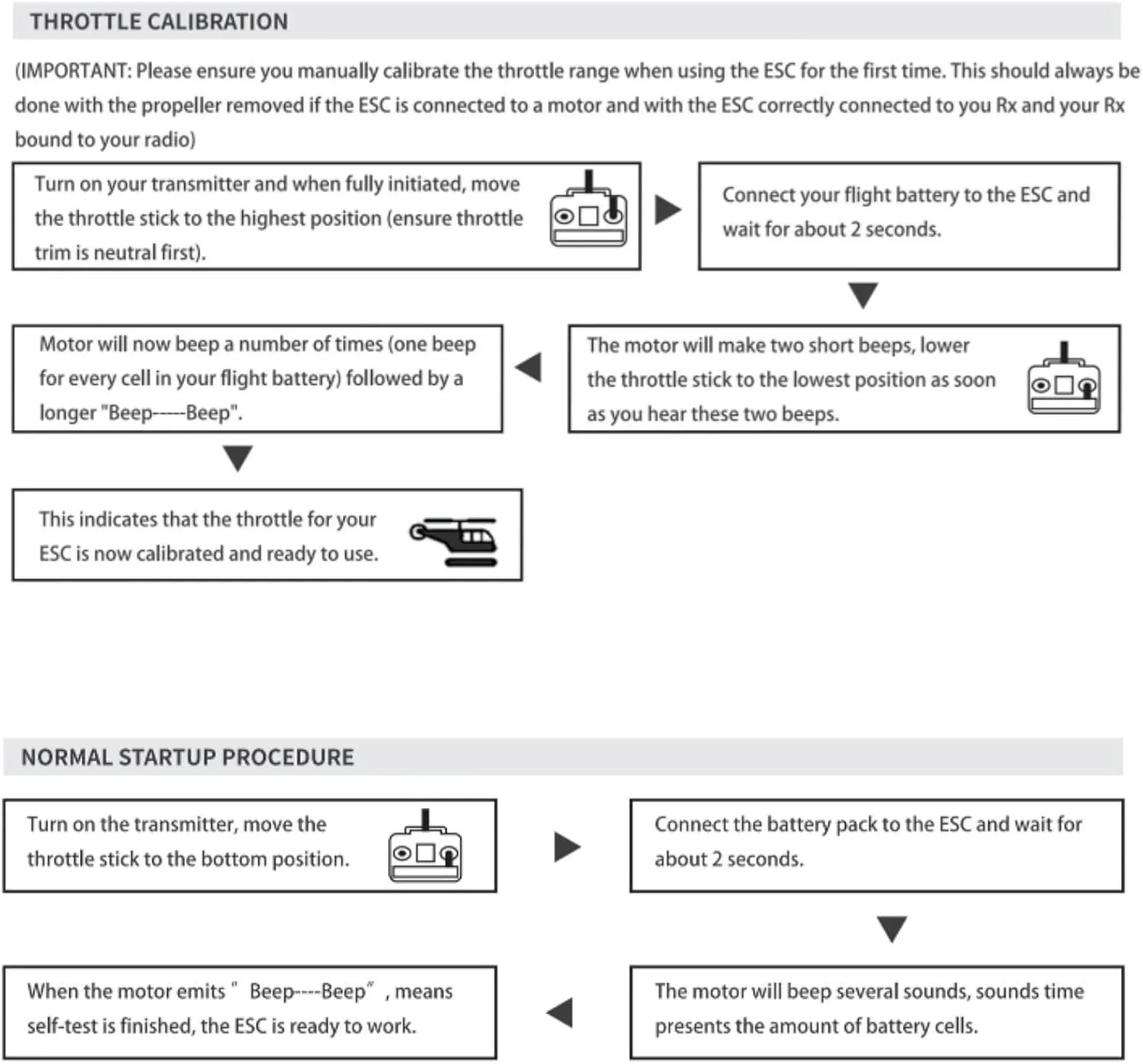

- Users can set the function according to the need,judge the working status by alarm,support high speed motor,can be programmed by programming card.

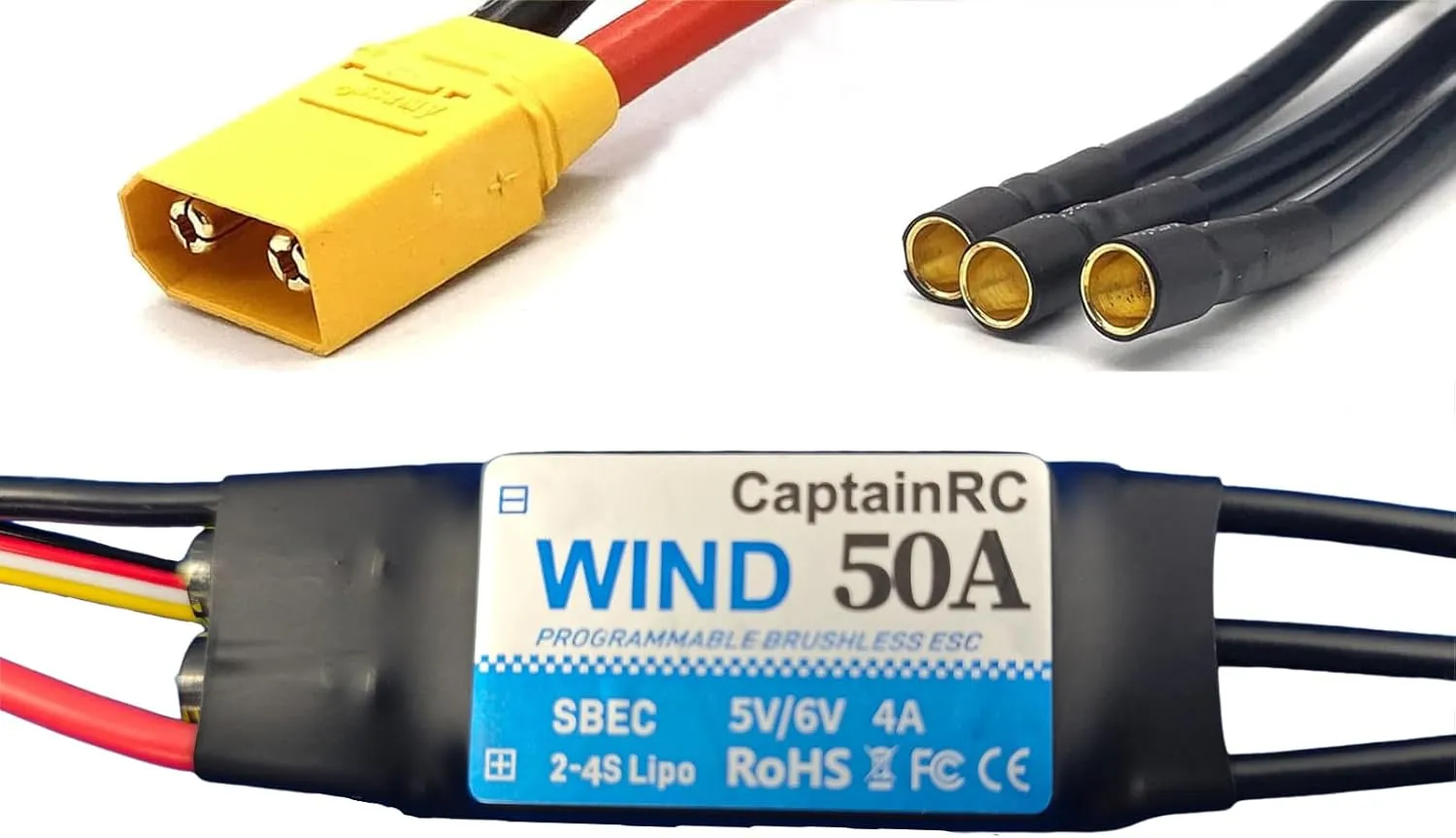

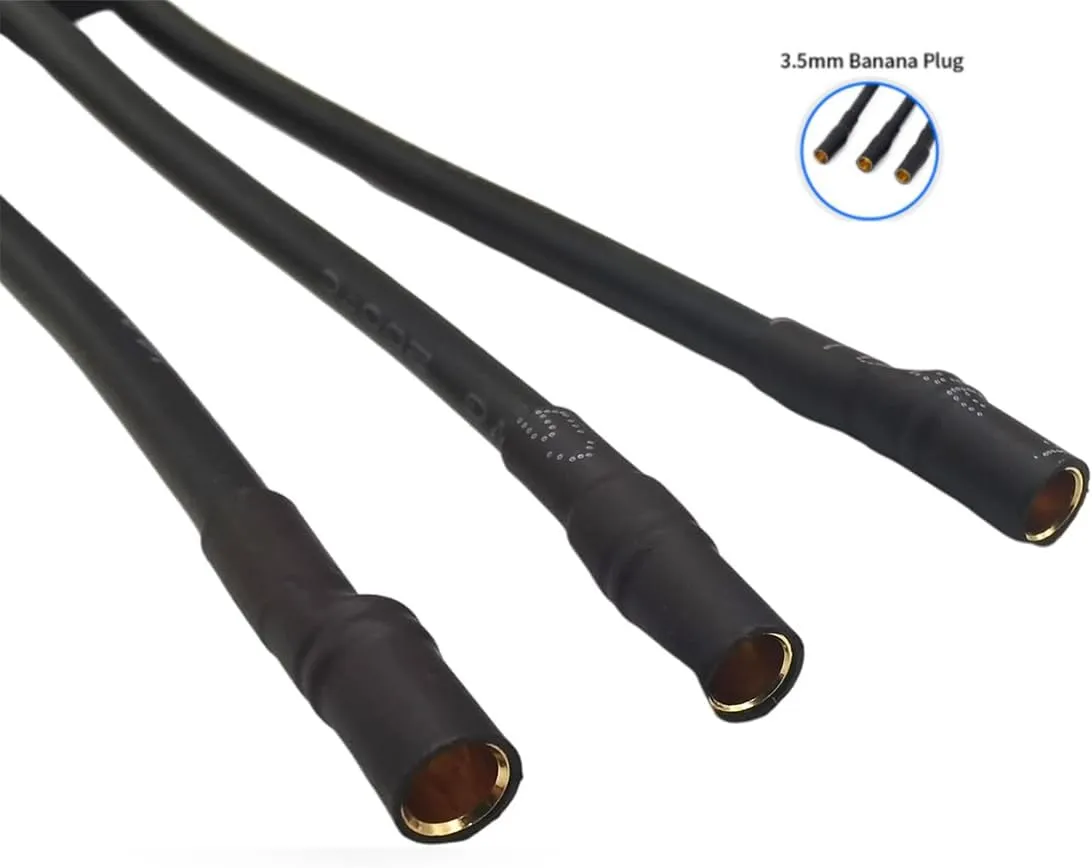

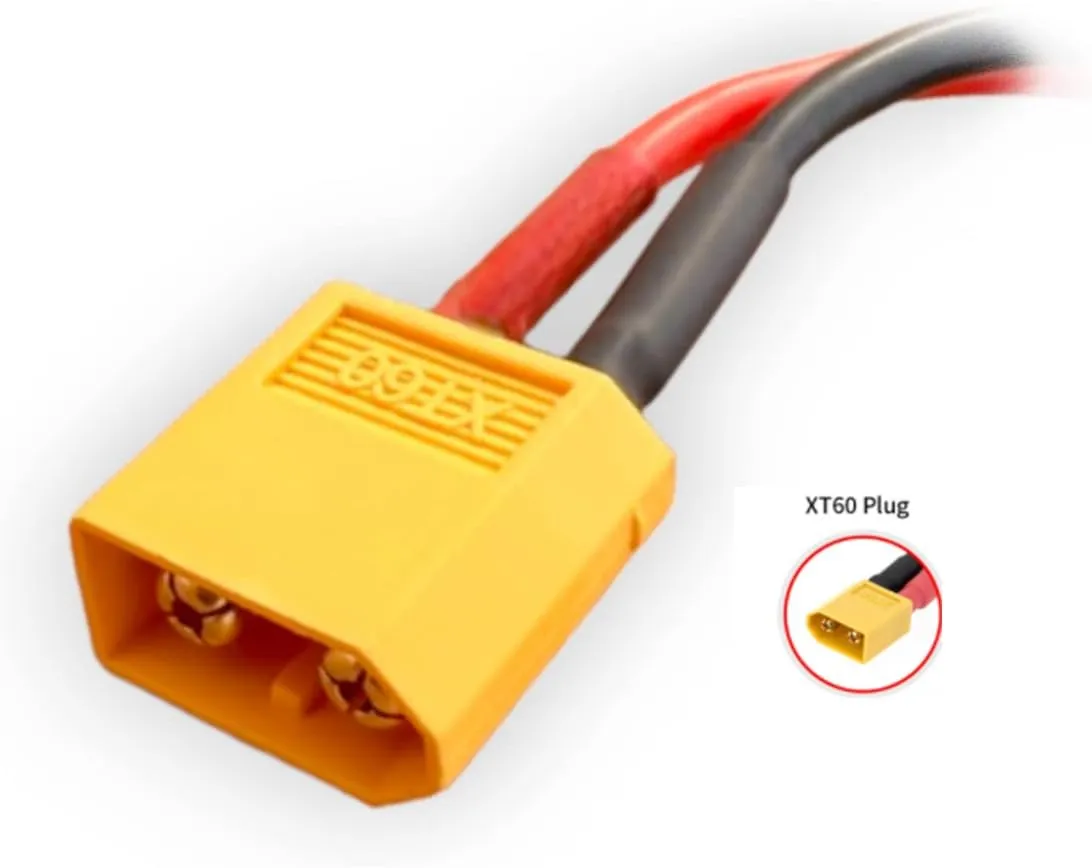

The captainrc wind series 50A Electronic Speed Controller (ESC) is a powerful little ESC that runs great and doesn't get hot like other ESCs! This ESC comes pre-installed with 3.5mm bullet plugs and XT60 plugs so you don't have to solder the plugs yourself!

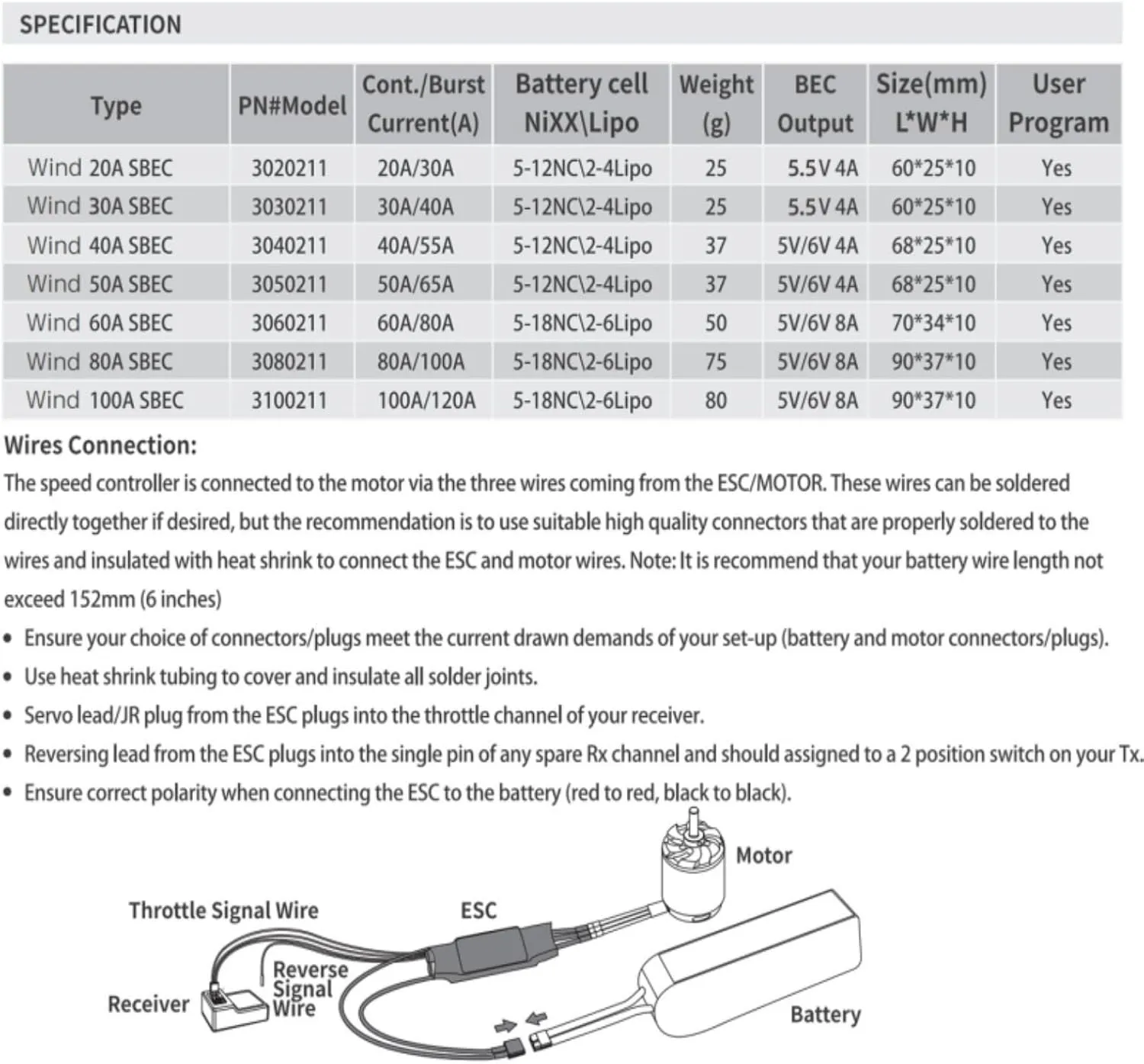

SPECIFICATIONS
Max/Peak Current: 50A/65A
Battery:2-4Lipo
BEC Output: 5.0V 6.0V/4A
Dimensions (L*W*H): 2.68*0.98*0.39 inches
Weight: 0.082 lbs
Motor Type: Brushless Motor
