- Work-holding fixture for Sherline mills
- Measures 3-1/2? long
- Made from extruded aluminum
- Includes four 10-32 x 3/8? mounting screws and T-nuts

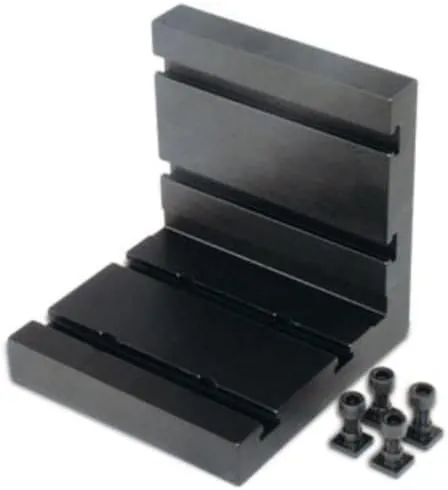

Sherline 90 Degree Short Angle Plate 3561
90 Degree Short Angle Plate
This angle plate is a very useful work-holding fixture for milling. It is 3-1/2" long as opposed to the P/N 3559 90° angle plate which is 10" long. You can hold parts from two directions at once. It will hold parts on either the vertical or horizontal surface. Its short length gives it the additional advantage of being able to be either parallel to or perpendicular to the mill table, giving you some extra setup options when working on small parts. It has two T-slots running full length on each face.
It is made from extruded aluminum with accurately machined faces and a black anodized finish. Provided with the plate are four 10-32 x 3/8" mounting screws and T-nuts.
This fixture is not limited to use on Sherline tools. Like the rotary table and some other Sherline accessories, it could be useful on larger machines in your shop as well.
90° Angle Plate Material: Aluminum
Body Coating: Black Anodized
Body Dimensions (H x W x D): 3? x 3.5?? x 3?
