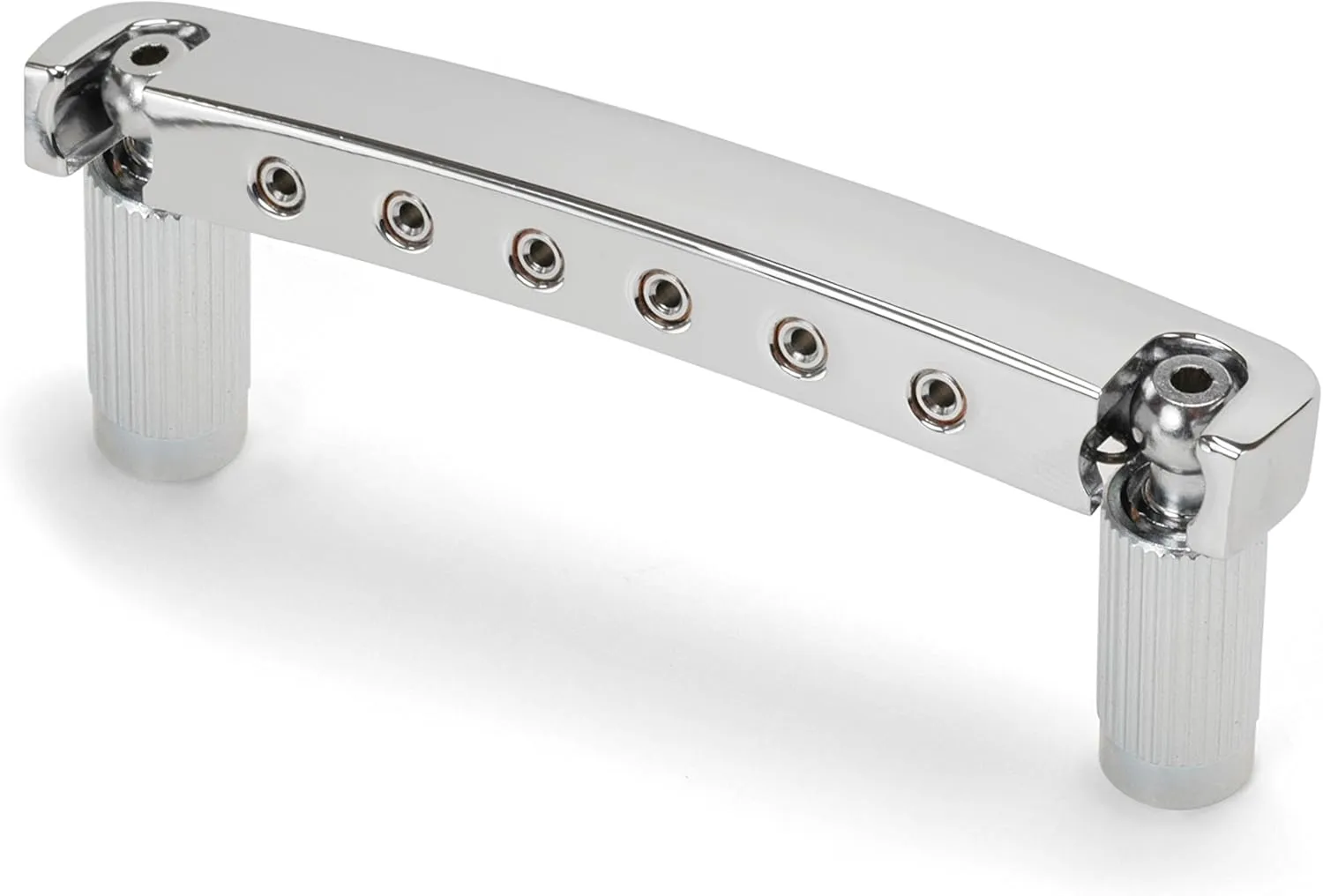

- The Gotoh 510 "Stop" Tailpiece pivots on unique ball-end threaded locking studs, for straight string pull
- Spring retainer clips prevent the tailpiece from falling off when the strings are removed, saving your guitar's finish from accidental dings
- Made of lightweight aluminum for distinctive tone
- String spread measures 2-1/16", post spacing is 3-1/4", and post threads are M8 x 1.25
- 11mm holes required for bushings
Modern design locking tailpiece!
The Gotoh 510 "Stop" Tailpiece pivots on unique ball-end threaded locking studs, for straight string pull. Spring retainer clips prevent the tailpiece from falling off when the strings are removed, to save your guitar's finish from accidental dings. Made of lightweight aluminum for distinctive tone.
Gotoh 510 "Stop" Tailpiece Specs:
- String spread: 2-1/16" (52.58mm)
- Post spacing: 3-1/4" (81.79mm)
- Post threads: M8 x 1.25mm
- Drill 7/16" (11mm) holes for the bushings
Tech Tip: Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with abrasive cord to remove file marks and burrs.
