- Two Bubble Levels
- All-Metal Design
- 1/4"-20 and 3/8"-16 Tripod Threads
- 1/4"-20 and 3/8"-16 Camera Screws

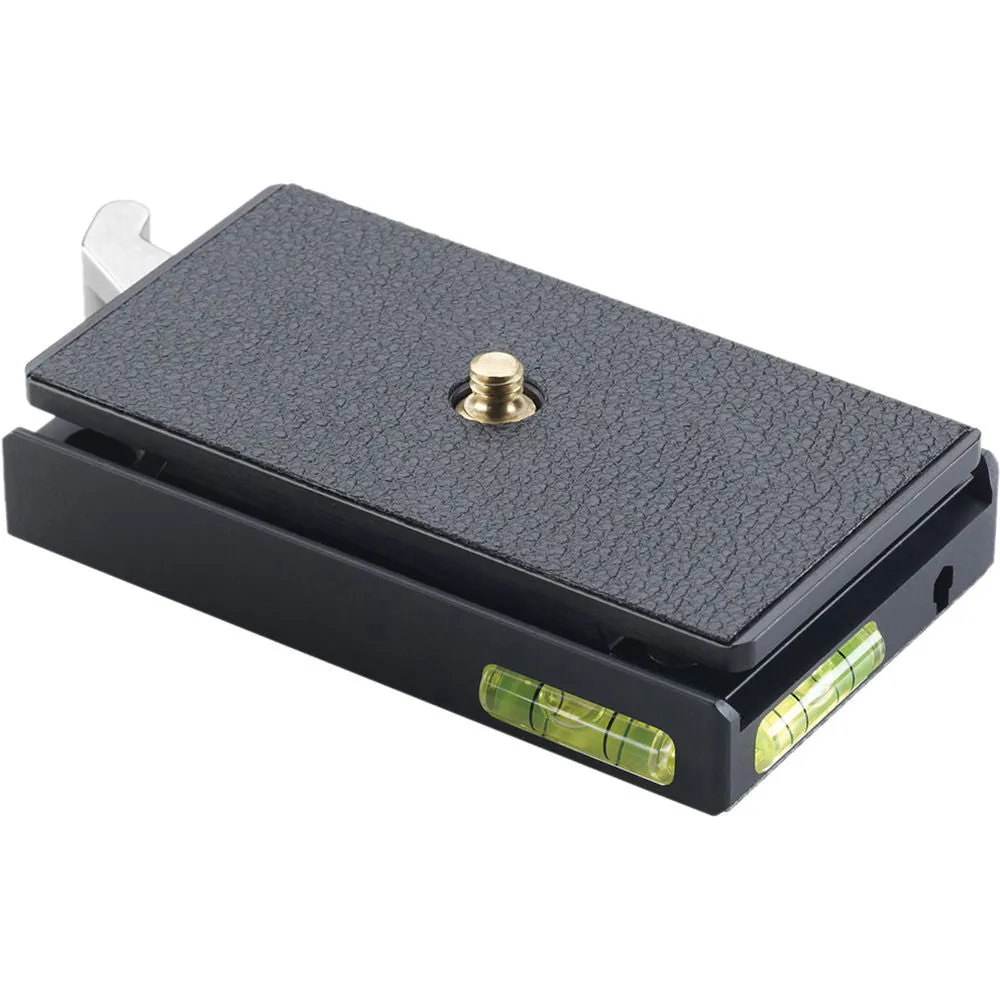

The Linhof Quickfix II is a large quick-release adapter with a camera plate and two bubble levels, one for forward-to-back tilt and the other for side-to-side tilt. The Quickfix II features both 1/4"-20 and 3/8"-16 threaded tripod bushings and as well as 1/4"-20 and 3/8"-16 camera screws. (The screws are secured into place via Allen key.) The assembly enables the instant attachment of professional camera gear and other equipment to a tripod or head.
Linhof's Quickfix II (Part #003881) is a revamped version of the original Quickfix II, with the two bubble levels added. Having bubble levels at the quick-release assembly is a sure way to tell if the orientation of your setup is flush with the horizon.
The camera plate measures 2 x 3.9" (5.2 x 10 cm).
- Durable all-metal design prevents twist and provides great coupling between camera and quick-release plate
- Connection between plate and clamp registers with positive, audible snap
- Quick Release Plate for Quickfix II
- 1/4"-20 Camera Screw
- Allen Key
- 2 Year Limited Warranty
| Dimensions (HxWxD) | 0.8 x 2.4 x 3.9" (20 x 60 x 100mm) Plate (WxD): 2 x 3.9" (52 x 100mm) |
| Weight | 0.7 lb (320 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 5.7 x 4.1 x 3.0" |
