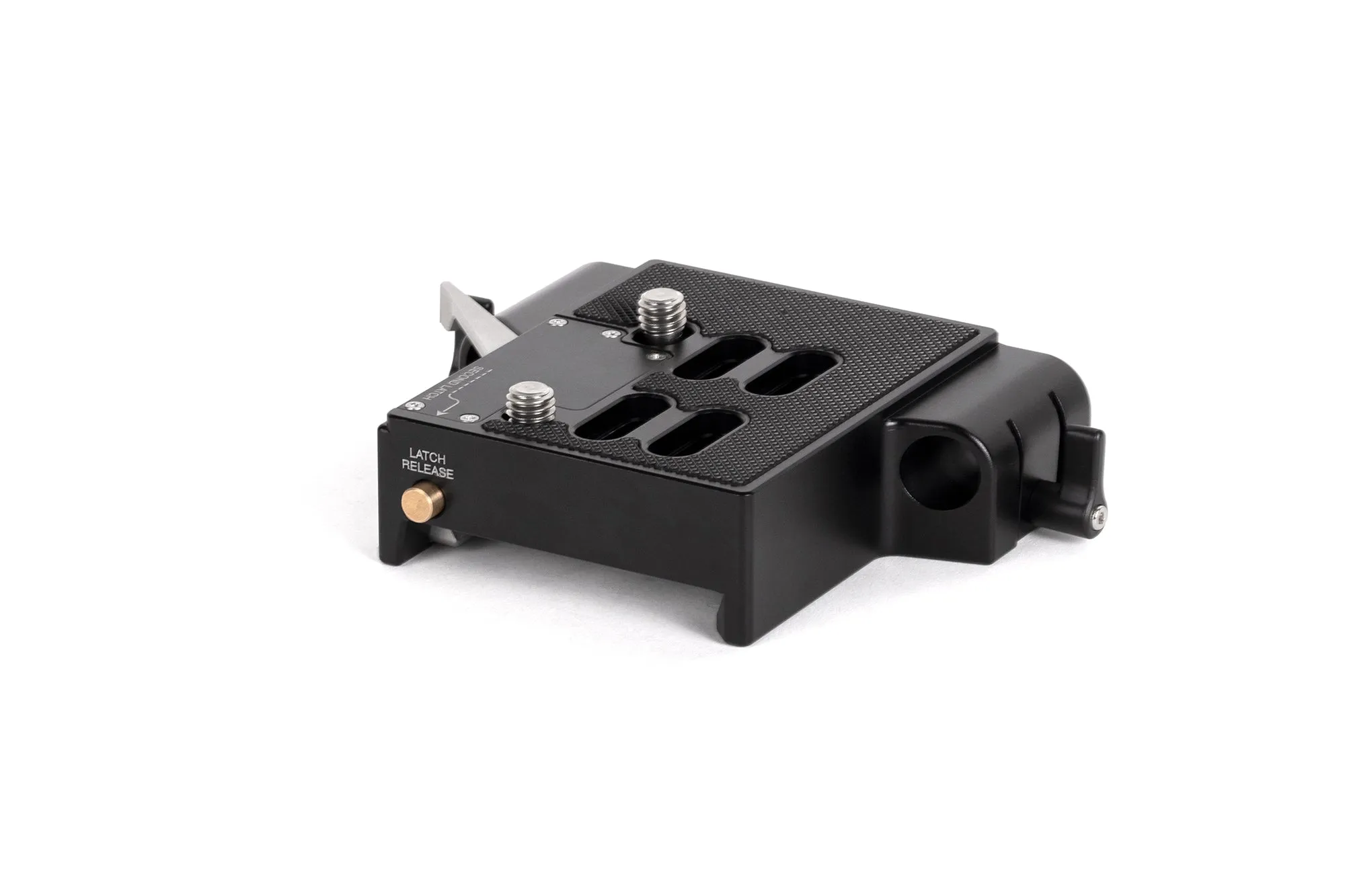

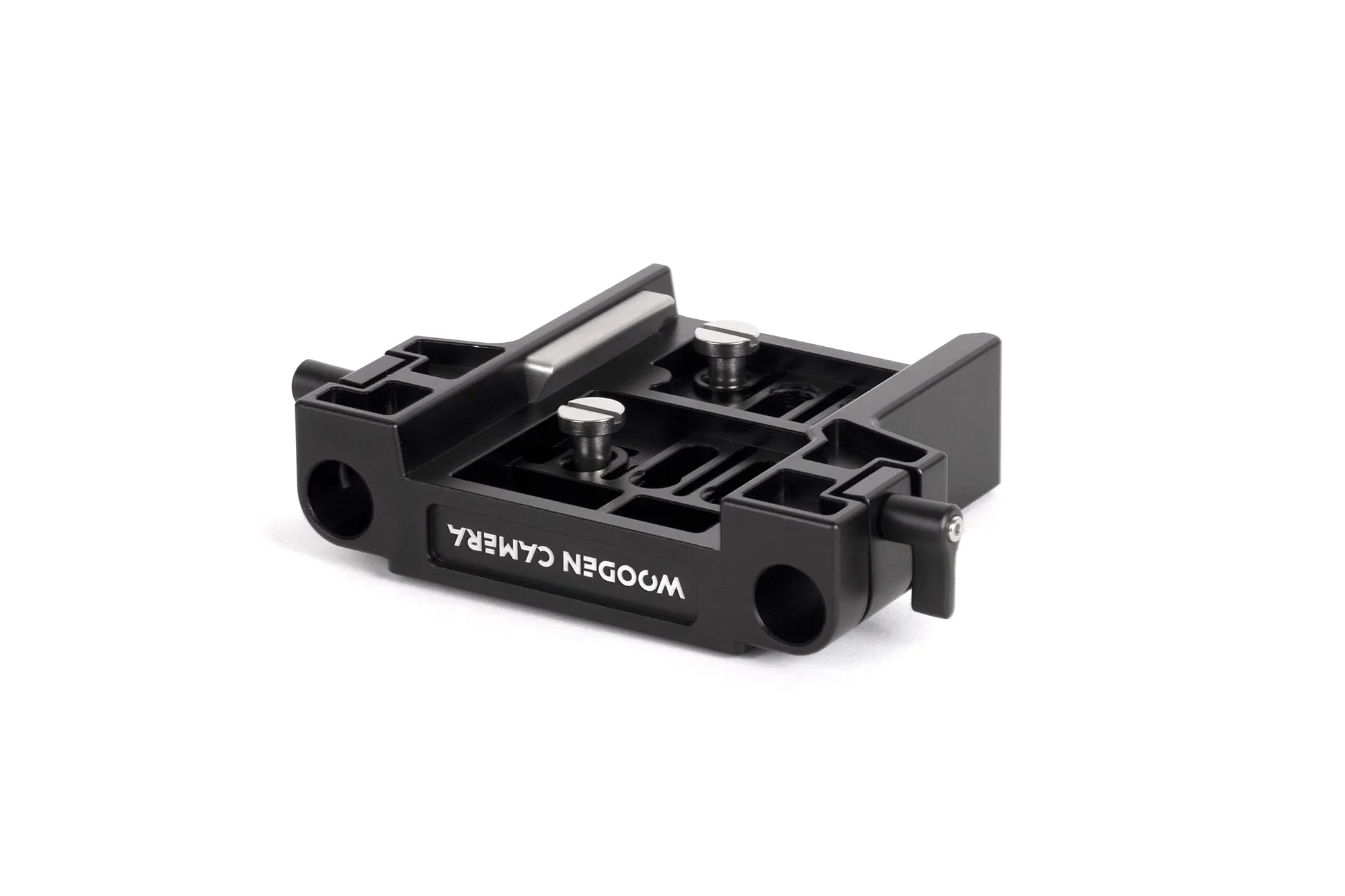

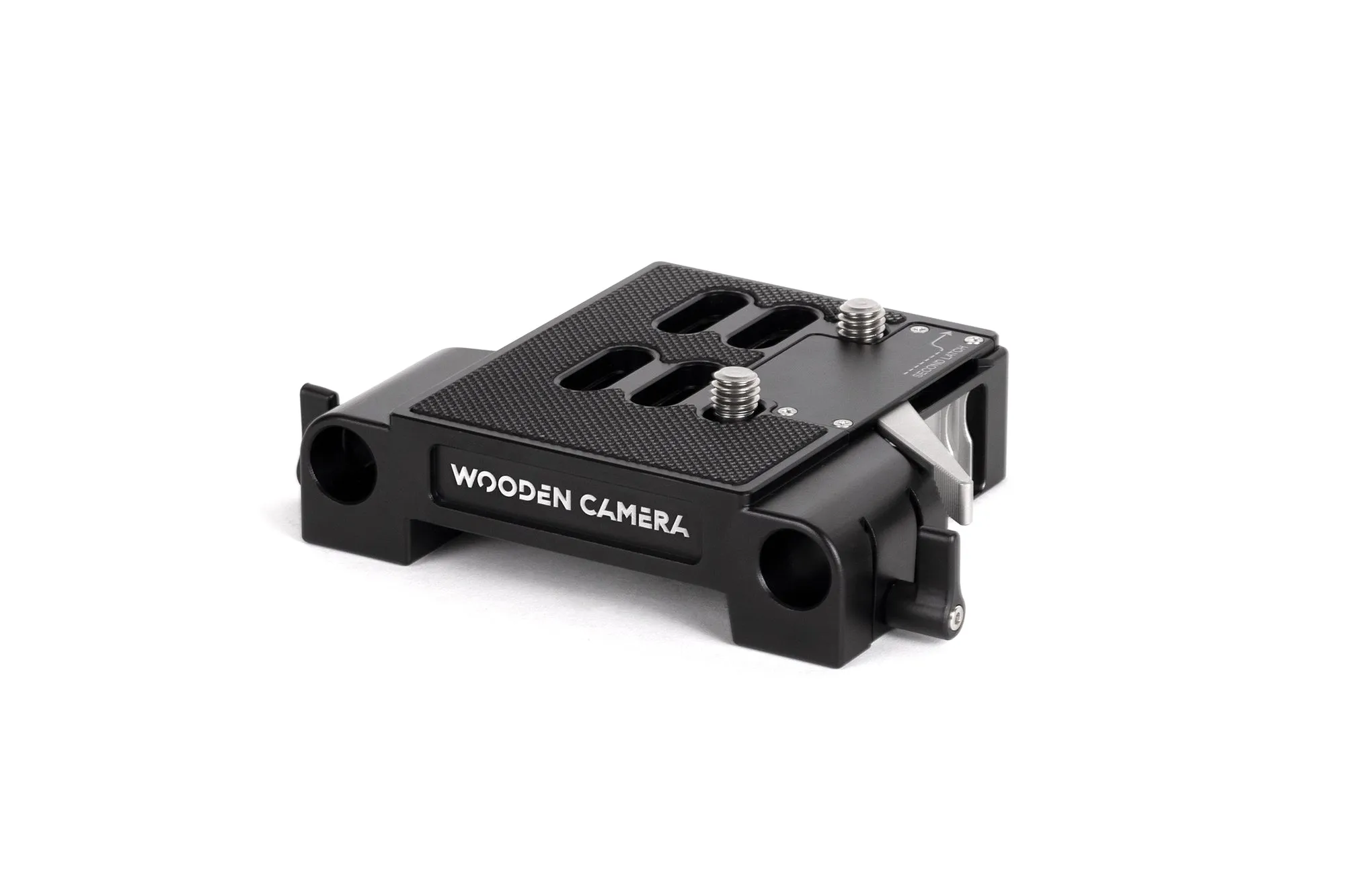

Quick Release Bridgeplate (15mm Studio) is an ARRI standard bridgeplate with 15mm studio offset spacing (rods spaced 100mm center to center). The new design allows the bridgeplate to drop down and lock on, anywhere along an ARRI standard dovetail.

A safety catch adds security to the lever release function. Unlock the lever half way to slide on the dovetail or push the release button to allow the lever to move further and release the camera vertically.

ARRI standard height makes it compatible with most camera rigs including those using our Unified Baseplates. Rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacings.

When combining this Bridgeplate with a RED® DSMC2™ or earlier RED® systems, the lens height will be approximately 3mm too tall. If you need to achieve the correct RED® lens height spacing, please choose our Unified Bridgeplate (15mm Studio). QR

Includes:
(2) 3/8-16 screws

Specifications:
Weight: 420g (0.93 lbs)
Dimensions: 101.6 x 152.4 x 31.75 mm (4 x 6 x 1.25 in)
