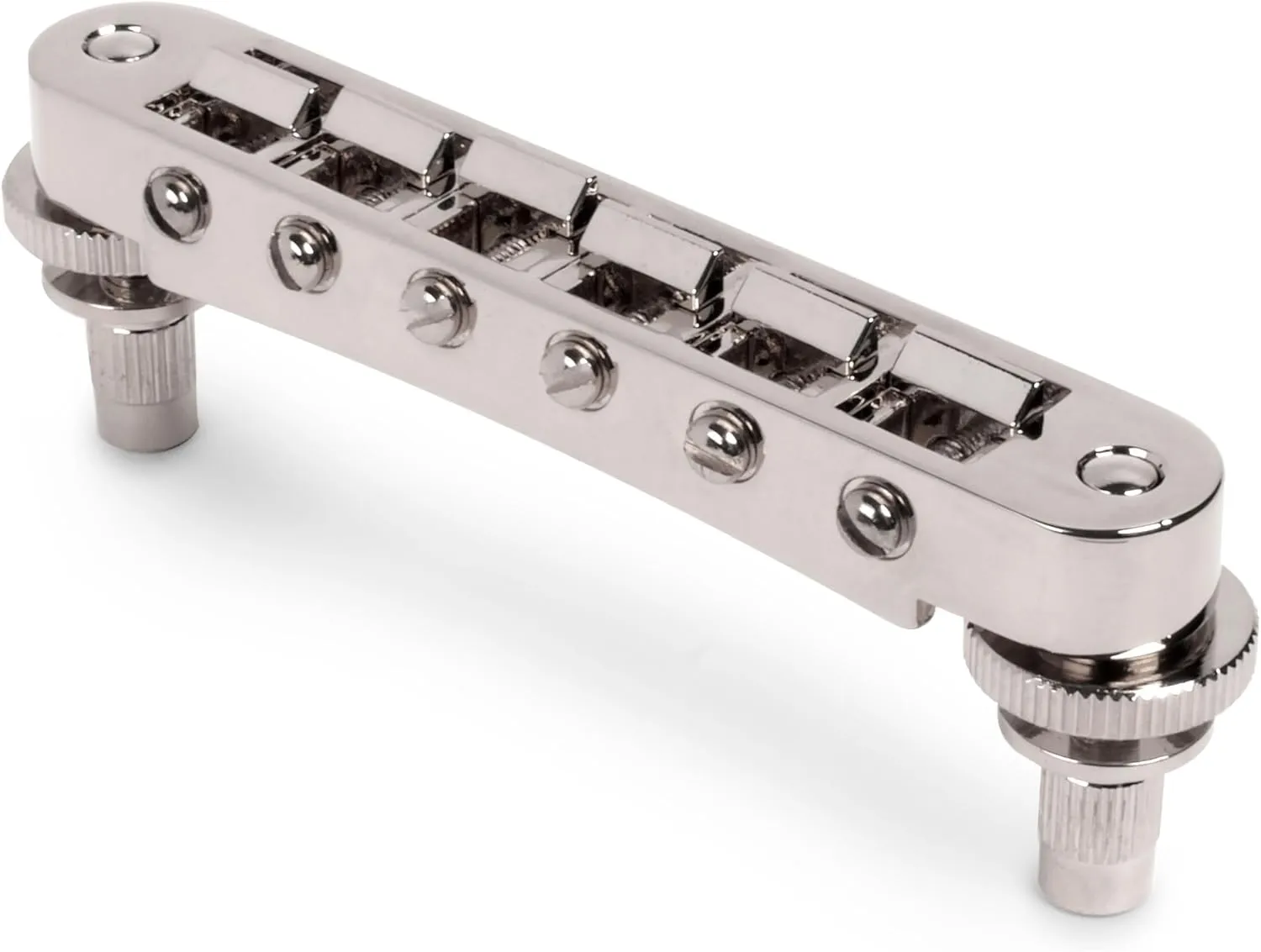

Nashville Tune-o-matic Bridge

The adjustable bridge design found on and compatible with current Gibson solidbodies, with unnotched saddles with individual saddle screw retainer clips.

Thumbwheel height-adjustment studs and bushings are included.

Use a 1/4" drill bit to install the bushings.

Stringspread Saddleradius Postspacing Postthreads

2-1/32" 12" 2-15/16" M5 x .8

About bridge & tailpiece measurements

String spread is the distance between the centers of the outer strings on a bridge or tailpiece.

Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.

Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.

Positioning the bridge

Find bridge placement for any scale with our free online tool fret position calculator.

Tip: Slotting Tune-o-matic style saddles

Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with Mitchell's Abrasive Cord to remove file marks and burrs.
