Wooden Camera A00208 Overview
- 1Description
- 2Wooden Camera Quick Release Top Plate for Sony VENICE/VENICE 2
- 3Wooden Camera Front 15mm Dual Rod Clamp for Sony VENICE/VENICE 2/Rialto/Rialto 2 Quick Release Top Plate
- 4Wooden Camera Hook-and-Loop Expansion Plate for Sony VENICE 2 Quick Release Top Plate
- 5Wooden Camera Cheese-Style Expansion Plate for Sony VENICE 2 Quick Release Top Plate
- 6Wooden Camera 15mm Dual Rod Clamp for Sony VENICE/VENICE 2 Quick Release Top Plate

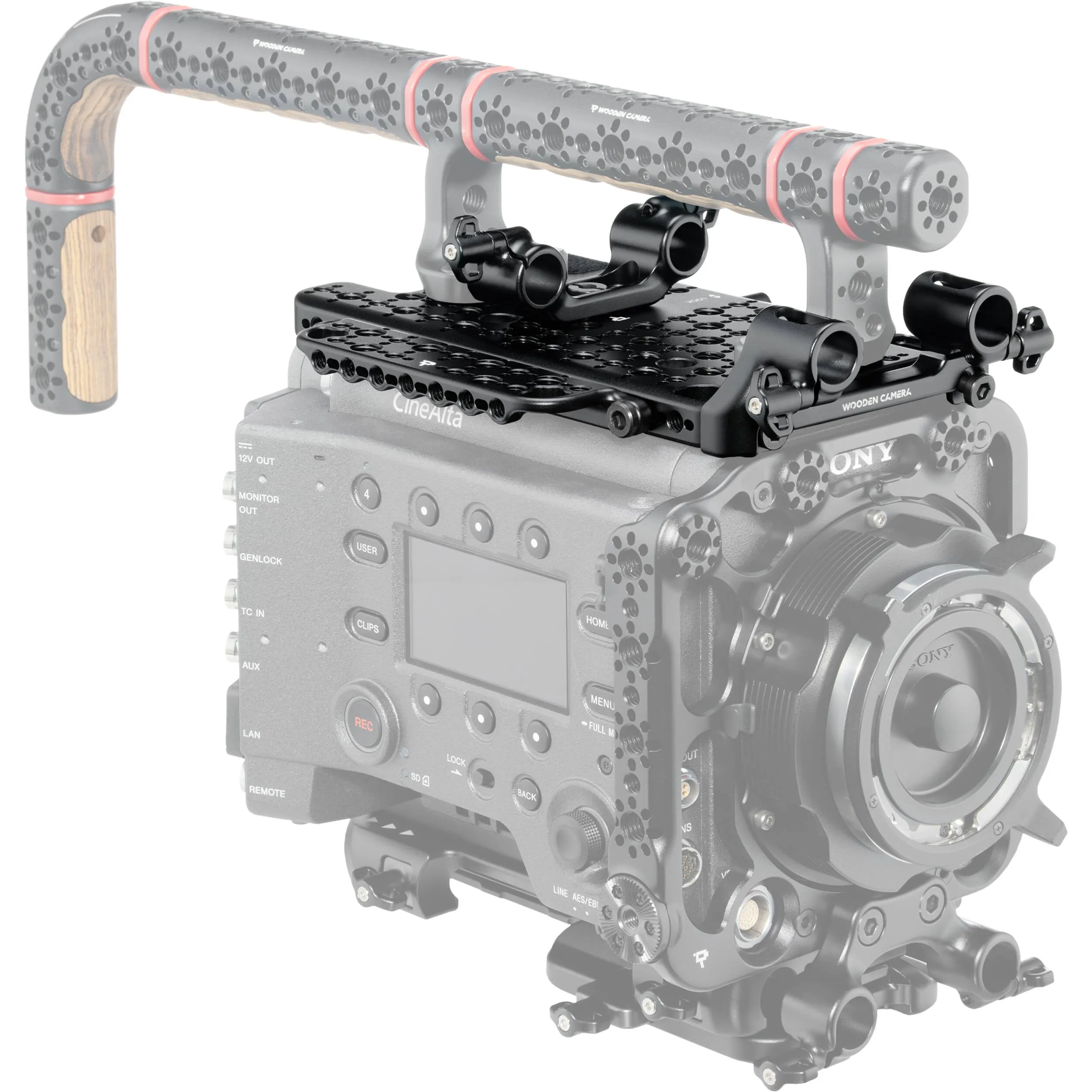

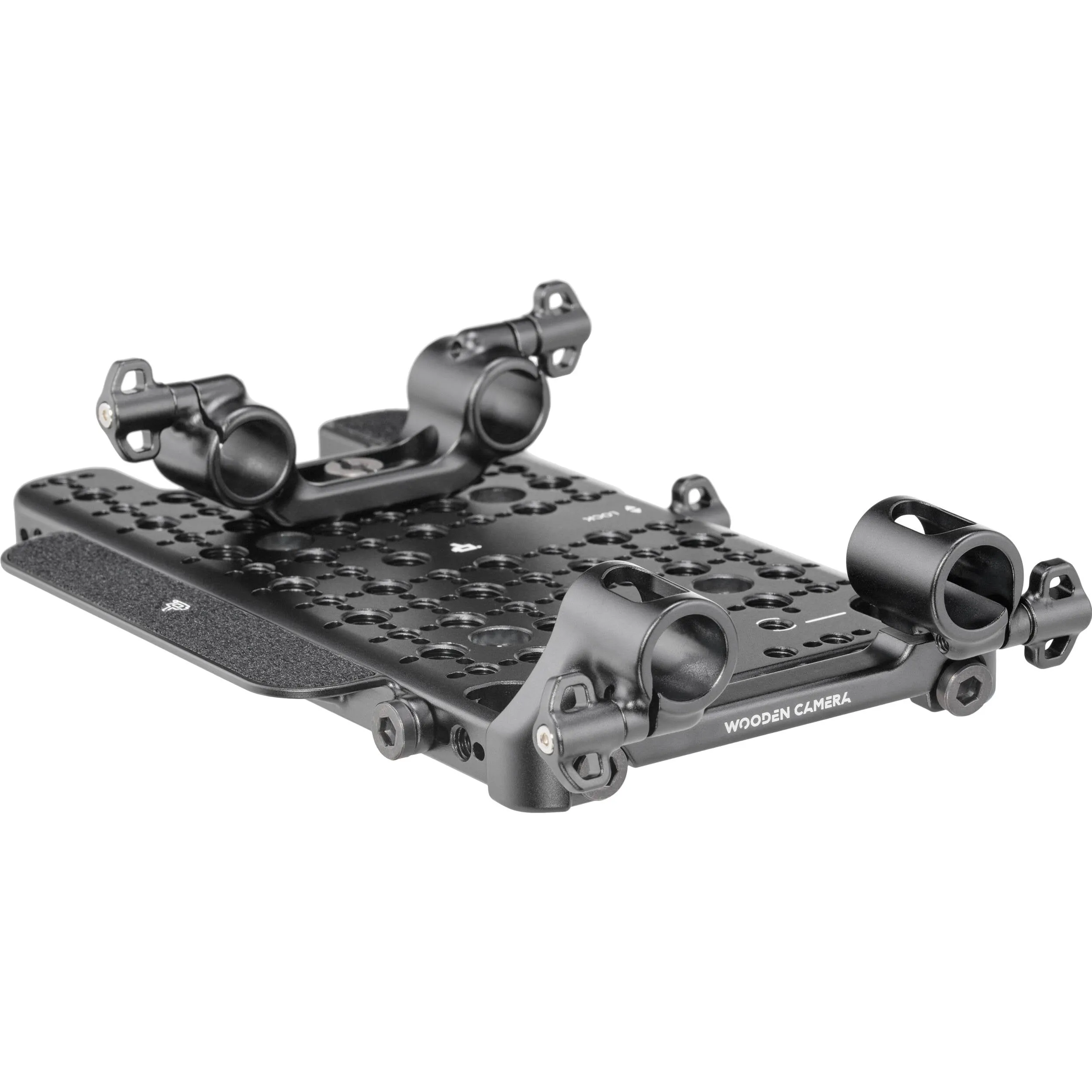

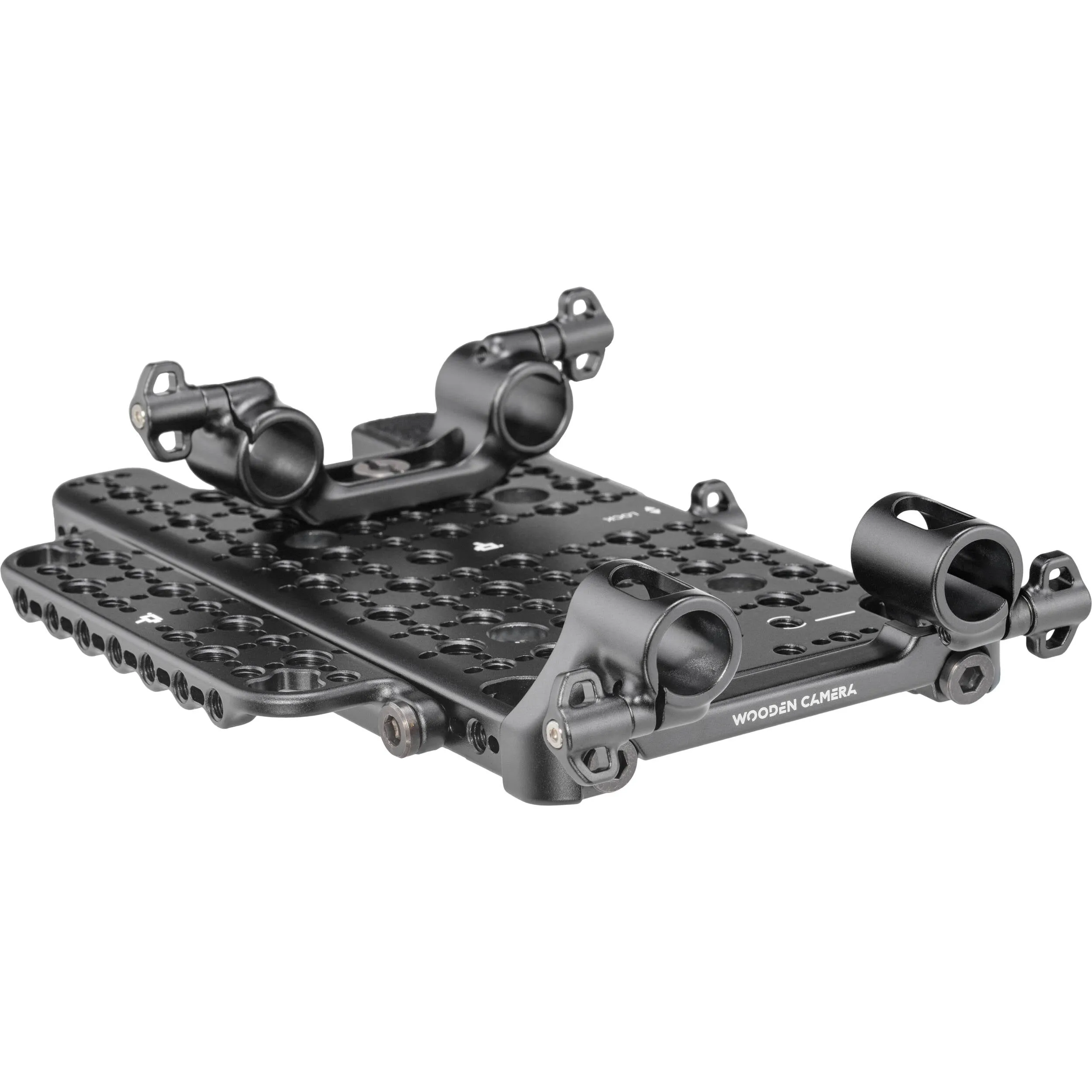

Customize the top plate of your Sony VENICE or VENICE 2 camera in a configuration that best suits your mounting needs with this Quick Release Top Plate System from Wooden Camera. The main component of the system is the top plate which slides onto the camera's preexisting top dovetail mount. Other expansion places in both cheese-style and hook-and-loop options offer additional space for accessories on the top or side of your camera. A front 15mm dual rod clamp integrated rod-compatible accessories into your rig loadout.
This Wooden Camera Quick Release Top Plate is designed to slide onto your Sony VENICE/VENICE 2's top dovetail mount for seamless, tool-free attachment to expand the mounting points on your rig. The cheese-style plate offers multiple mounting threads to attach various accessories like wireless transmitters, microphone systems, and the separately available 15mm dual rod clamp to your rig. It even has an integrated spot for hook-and-loop accessories. Four 1/4"-20 mounting screws lock the plate into place when needed. Its lightweight design ensures no extra bulk is added to your rig configuration.
This Front 15mm Dual Rod Clamp from Wooden Camera is designed to attach to the front of the quick release top plate for your Sony VENICE/VENICE 2/Rialto/Rialto 2 and provide upper 15mm rod clamps for accessory integration. Mounting threads at the bottom of the clamp line up with the threads on the top plate for optically centered orientation. Integrate rod-based accessories such as battery plates and follow focus controls.
Add this Hook-and-Loop Expansion Plate to your Wooden Camera Quick Release Top Plate to increase the amount of mounting space for hook-and-loop accessories on your Sony VENICE 2 camera. Attach the 5.4" expansion plate to the right side of the top plate system.
Add this Cheese-Style Expansion Plate to your Wooden Camera Quick Release Top Plate to increase the amount of mounting threads on your Sony VENICE 2 camera. Attach the 5.4" expansion plate to the right side of the top plate system. Multiple 1/4"-20 and 3/8"-16 threads offer additional space for articulating arms and transmission systems.
This 15mm Dual Rod Clamp from Wooden Camera is designed to attach to the top of the quick release top plate for your Sony VENICE/VENICE 2 and provide upper 15mm rod clamps for accessory integration. Mounting threads at the bottom of the clamp line up with the threads on the top plate for optically centered orientation. Integrate rod-based accessories such as battery plates and follow focus controls.
In the Box
- Wooden Camera Quick Release Top Plate for Sony VENICE/VENICE 2
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Front 15mm Dual Rod Clamp for Sony VENICE/VENICE 2/Rialto/Rialto 2 Quick Release Top Plate
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Hook-and-Loop Expansion Plate for Sony VENICE 2 Quick Release Top Plate
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Cheese-Style Expansion Plate for Sony VENICE 2 Quick Release Top Plate
- Limited 1-Year Manufacturer Warranty
- Wooden Camera 15mm Dual Rod Clamp for Sony VENICE/VENICE 2 Quick Release Top Plate
- Limited 1-Year Manufacturer Warranty
- Description
- Wooden Camera Quick Release Top Plate for Sony VENICE/VENICE 2
- Wooden Camera Front 15mm Dual Rod Clamp for Sony VENICE/VENICE 2/Rialto/Rialto 2 Quick Release Top Plate
- Wooden Camera Hook-and-Loop Expansion Plate for Sony VENICE 2 Quick Release Top Plate
- Wooden Camera Cheese-Style Expansion Plate for Sony VENICE 2 Quick Release Top Plate
- Wooden Camera 15mm Dual Rod Clamp for Sony VENICE/VENICE 2 Quick Release Top Plate
Wooden Camera Quick Release Top Plate for Sony VENICE/VENICE 2 Specs
| Compatibility | Sony VENICE / VENICE 2 |
| Environmental Protection | No |
| Mounting | 1 x Dovetail Mount 4 x 1/4"-20 Screw Multiple x Mounting Threads |
| Color | Black |
| Package Weight | 0.865 lb |
| Box Dimensions (LxWxH) | 7.75 x 4.5 x 0.75" |
Wooden Camera Front 15mm Dual Rod Clamp for Sony VENICE/VENICE 2/Rialto/Rialto 2 Quick Release Top Plate Specs
| Mounting | Accessory Mount: |
| Rod Standard | 15 mm (Unspecified Spacing) |
| Rod Ports | 2 x 15 mm Rod Port |
| Mounting | Accessory Mount: |
| Rod Standard | 15 mm (Unspecified Spacing) |
| Rod Ports | 2 x 15 mm Rod Port |
| Dimensions | 4.4 x 1.3 x 0.9" / 113 x 39.5 x 30.5 mm |
| Weight | 2.6 oz / 74 g |
| Package Weight | 0.165 lb |
| Box Dimensions (LxWxH) | 4.4 x 1.8 x 1.2" |
Wooden Camera Hook-and-Loop Expansion Plate for Sony VENICE 2 Quick Release Top Plate Specs
| Compatibility | Wooden Camera Quick Release Top Plate for Sony VENICE/VENICE 2 |
| Environmental Protection | No |
| Mounting | Multiple x Hook-and-Loop |
| Dimensions | 5.4 x 1.2 x 0.5" / 137.5 x 31 x 13 mm |
| Weight | 0.9 oz / 25 g |
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 5.85 x 1.65 x 0.5" |
Wooden Camera Cheese-Style Expansion Plate for Sony VENICE 2 Quick Release Top Plate Specs
| Compatibility | Wooden Camera Quick Release Top Plate for Sony VENICE/VENICE 2 |
| Environmental Protection | No |
| Mounting | Multiple x 1/4"-20 Threads Multiple x 3/8"-16 Threads |
| Dimensions | 5.4 x 1.6 x 0.5" / 137.5 x 40 x 13 mm |
| Weight | 1.7 oz / 48.5 g |
| Package Weight | 0.13 lb |
| Box Dimensions (LxWxH) | 5.4 x 1.65 x 0.55" |
Wooden Camera 15mm Dual Rod Clamp for Sony VENICE/VENICE 2 Quick Release Top Plate Specs
| Mounting | Accessory Mount: |
| Rod Standard | 15 mm (Unspecified Spacing) |
| Rod Ports | 2 x 15 mm Rod Port |
| Mounting | Accessory Mount: |
| Rod Standard | 15 mm (Unspecified Spacing) |
| Rod Ports | 2 x 15 mm Rod Port |
| Dimensions | 4.4 x 1.3 x 0.9" / 113 x 34 x 24 mm |
| Weight | 1.4 oz / 39 g |
| Package Weight | 0.11 lb |
| Box Dimensions (LxWxH) | 4.35 x 1.75 x 0.95" |
