- T-REX 600XN adopts the new direct to swashplate servo design, provides precise and fast control! Utilizing the 550 Flybarless Rotor Head System features an extremely low Center of Gravity (CG) design, to effectively reduces resistance during 3D maneuvers, and increase flight responsiveness and precision. This designed maintains a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior stable flight performance.
- The Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. The T-REX 600XN maintains the proper CG, by moving the engine forward to allow the fuel tank to be positioned in the center of the main shaft. CG remains consistent as the fuel level changes during flight.
- The new steel alloy clutch liner is durable with temperature control designed to avoid the exploding clutch liner or a breaking clutch housing. The steel alloy clutch liner extends the life to over a 1000 flights. The Receiver Mount provides cable and wiring protection, and easy to maintenance by removing a few screws from the mainframe.
- The new high voltage output: 6A 7.4V BEC with down / regulation system for constant power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos.
- The brand new DS820M/DS825M high voltage brushless servos use brushless motors for fast speed, high torque, superior, and efficient reaction time allows the 600XN precise, fast performance. The new CNC machined aluminum case design is aesthetically appealing while acting as a highly efficient heat sink.

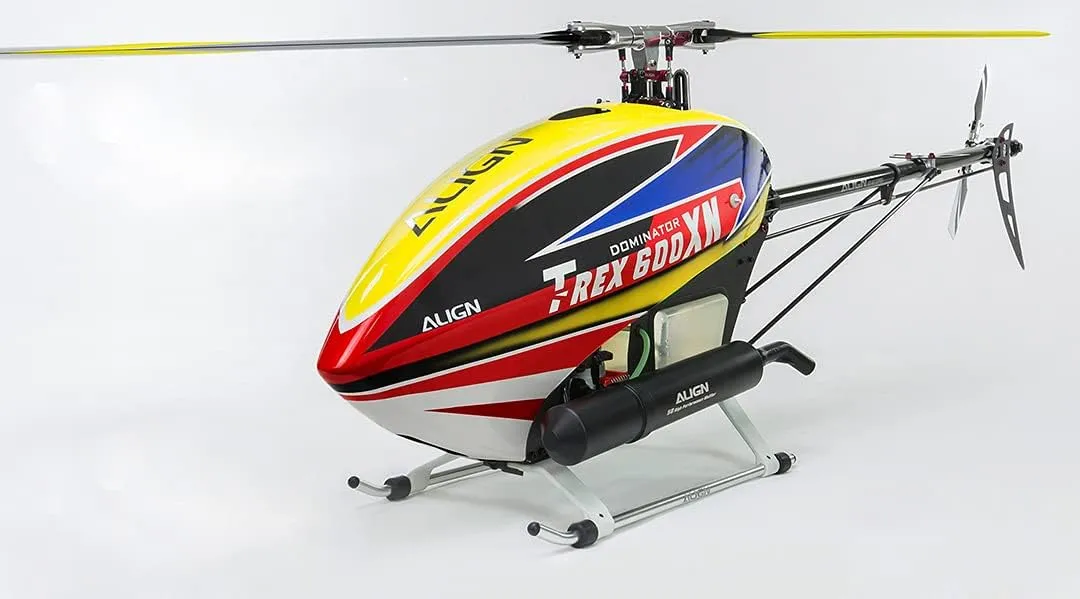

RC Helicopter T-REX 600XN Super Combo 3D Helicopter
Specification
Length: 1152mm
Height: 356mm
Width: 189mm
Main Blade Length: 600mm
Main Rotor Diameter: 1354mm
Tail Rotor Diameter: 260mm
Motor Pinion Gear: 20T
Main Drive Gear: 170T
Autorotation Tail Drive Gear: 180T
Tail Drive Gear: 40T
Drive Gear Ratio: 8.5:1:4.5
Fuel Tank Capacity: 440cc.
Takeoff Weight: 3400g
Accessories
T-REX 600XN DOMINATOR Set x 1set
600 Carbon Fiber Blades x 1set
95mm 3K Carbon Fiber Tail Blades x 1set
55H Engine x 1
50 High Performance Muffler x 1
DS820M High Voltage Brushless Servo x 3
DS825M High Voltage Brushless Servo x 1
DS530 Digital Servo x 1
B6M 2 In 1 Voltage Regulator x 1
Governor Sensor x 1
Radio transmitter and electronic equipment required for assembly:
Transmitter(7-channel or more, helicopter system)
Receiver(7-channel or more)
Flybarless System x1
Engine starter x 1
Fuel pump x 1
Engine fuel x 1
Digital Pitch Gauge
Optional Choice :
2S1P 7.4V Li-Po 1900~2600mAh Battery x 1
